SKU : TE240
D2: Comfortable 3D adjustment, Load capacity 60 kg. Opening angle 180"
Categories : สินค้าโชว์งานสถาปนิก69 D2 , Fitting Accessories , Hinge ,
Share
TECTUS by SIMONSWERK

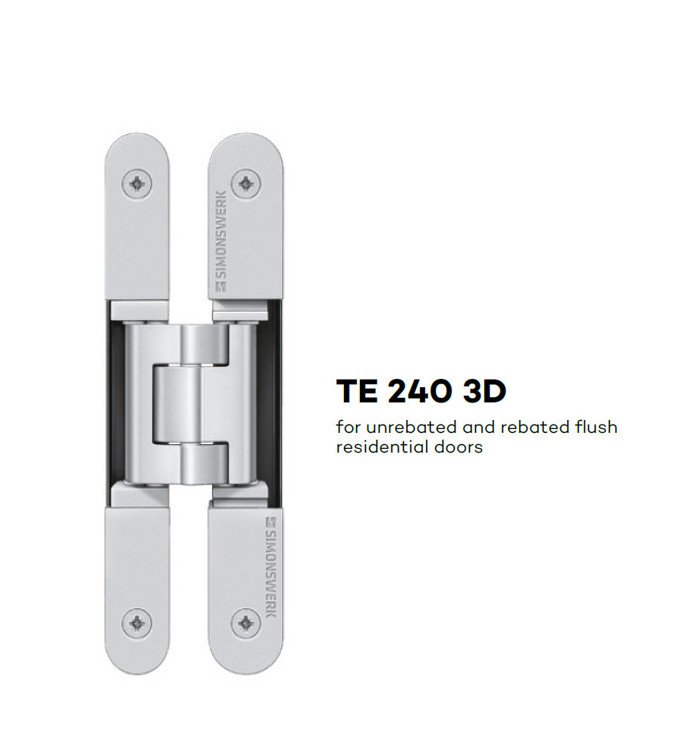

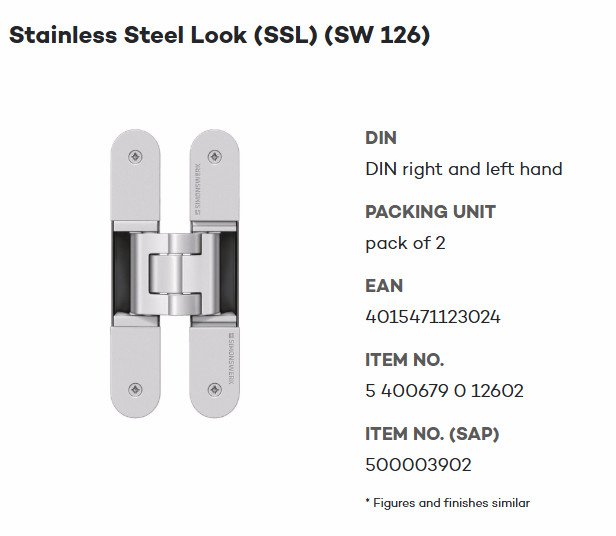

TE 240 3D for unrebated and rebated flush residential doors

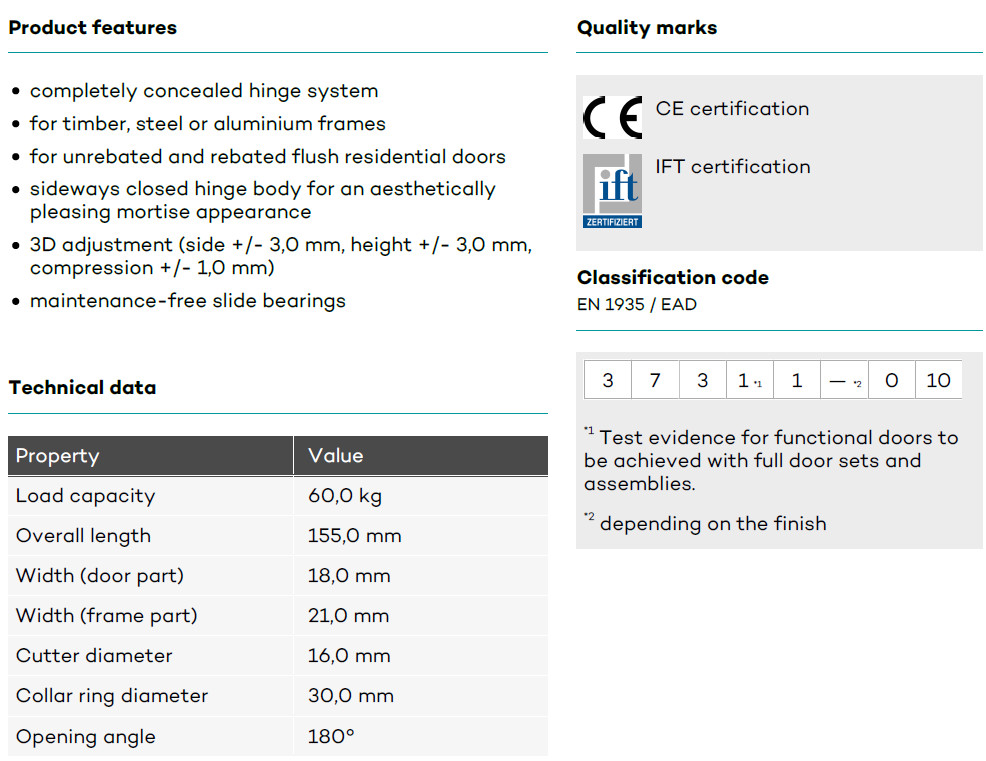

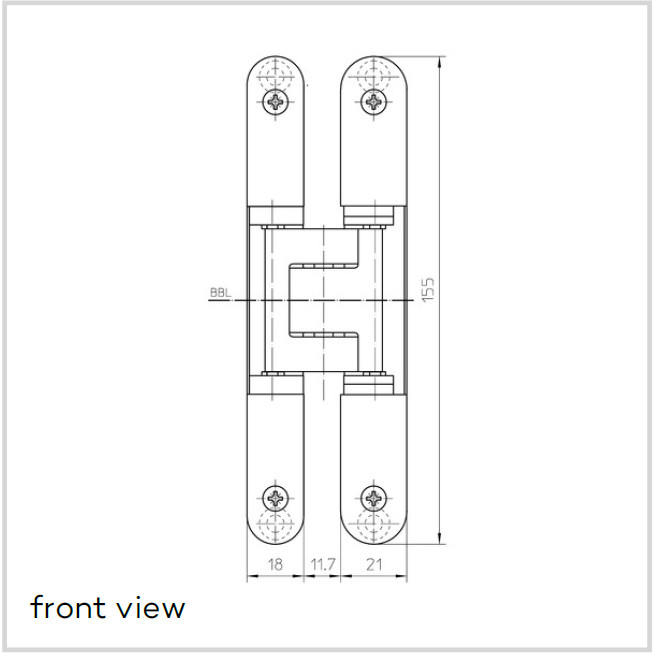

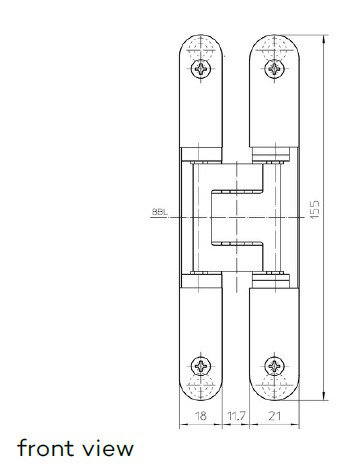

SIMONSWERK TECTUS hinge TE 240 3D. Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames. Load capacity up to 60 kg, opening angle up to 180°, overall length 155 mm, right hand and left hand applicable, maintenance-free slide bearings, three-dimensionally adjustable: side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm. Finish...
